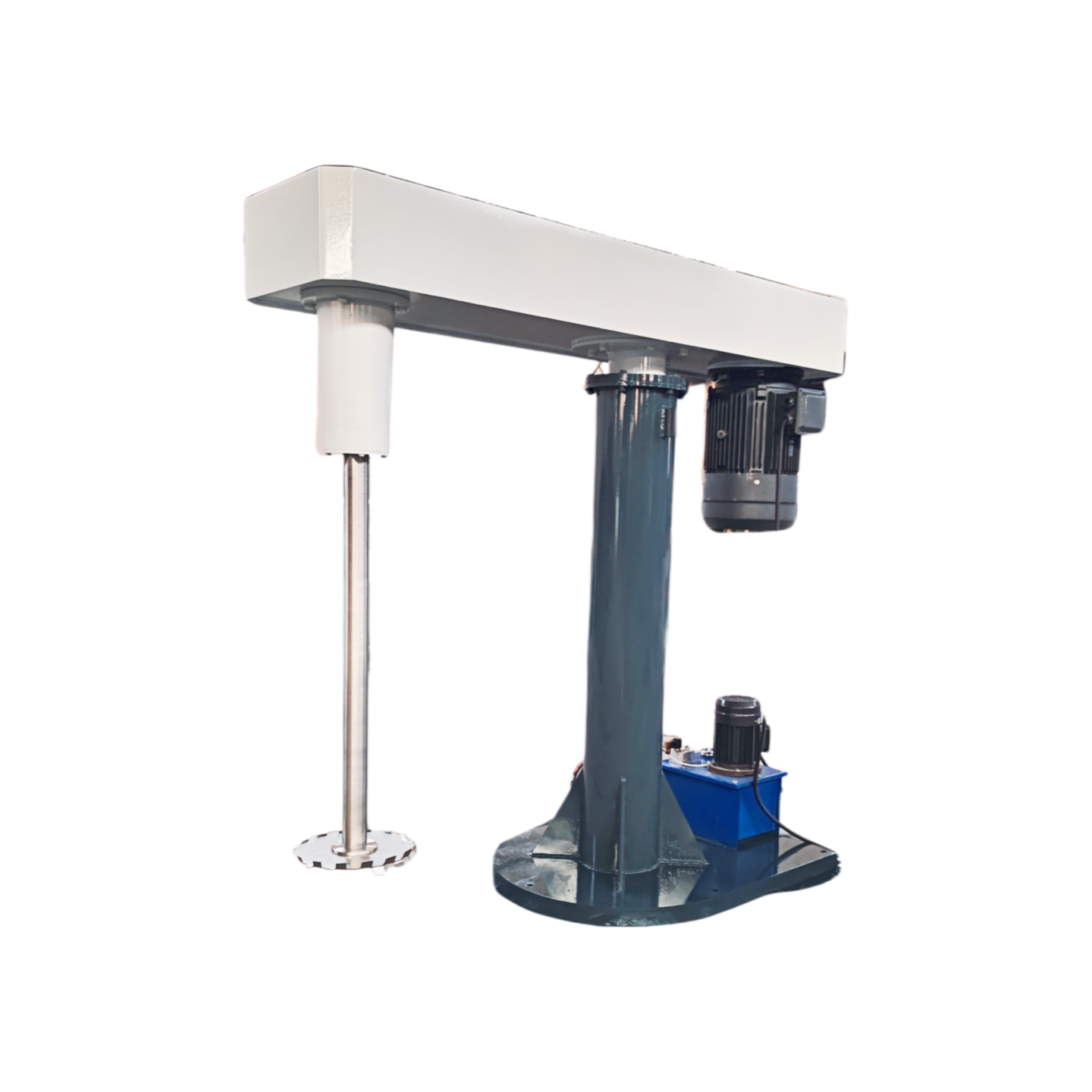

High Speed Disperser for Paints, Coatings & Inks
HENGMEI industrial high speed disperser delivers strong shear dispersion from 1.5 kW to 132 kW, 50 L to 10,000 L batch capacity — the workhorse for paint, coating, ink, adhesive and battery slurry production.
Get a Quote View All Products
Why Choose Our High Speed Disperser?

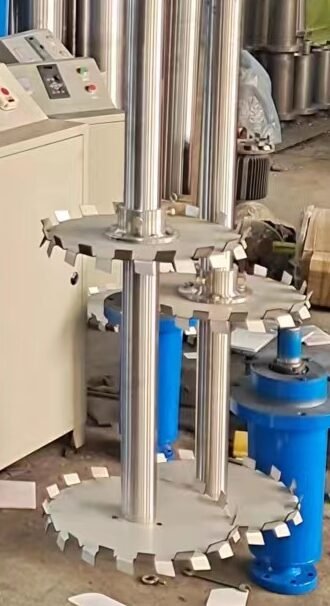

Our disperser — also known as a high speed dissolver — is designed for efficient grinding, dispersing and mixing of liquid-solid systems, breaking down agglomerates with a saw-tooth disc rotating at up to 25 m/s.

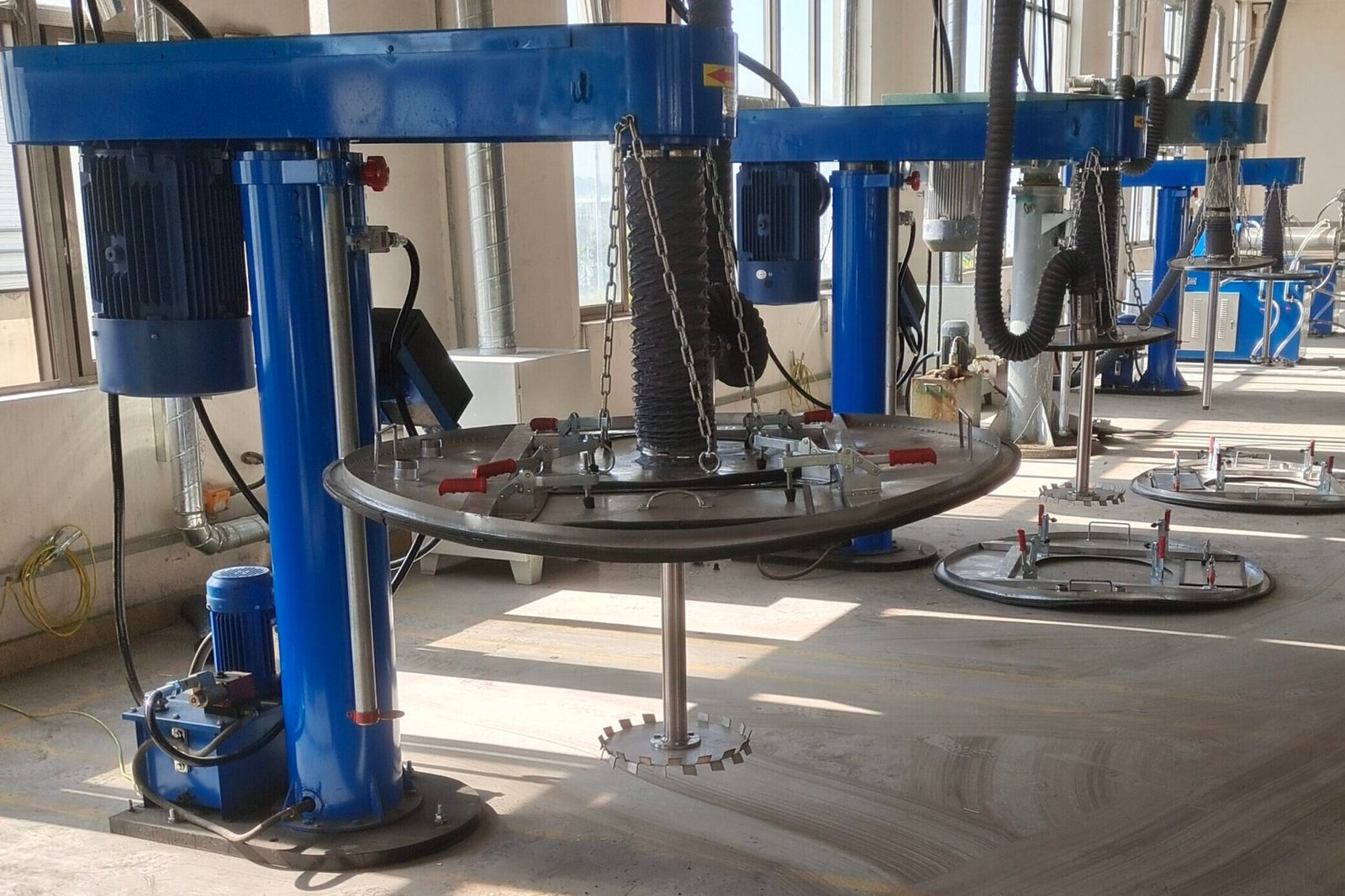

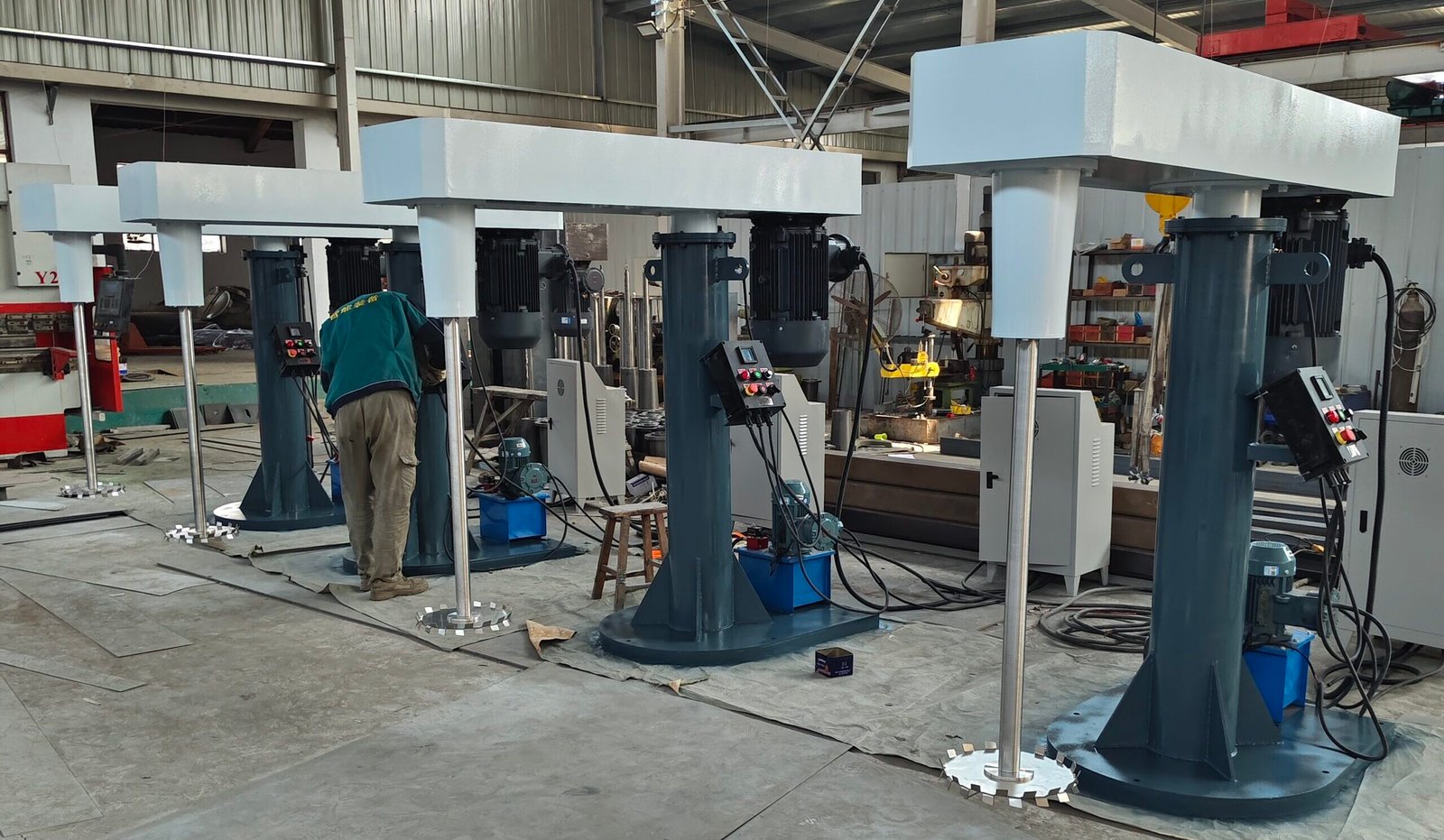

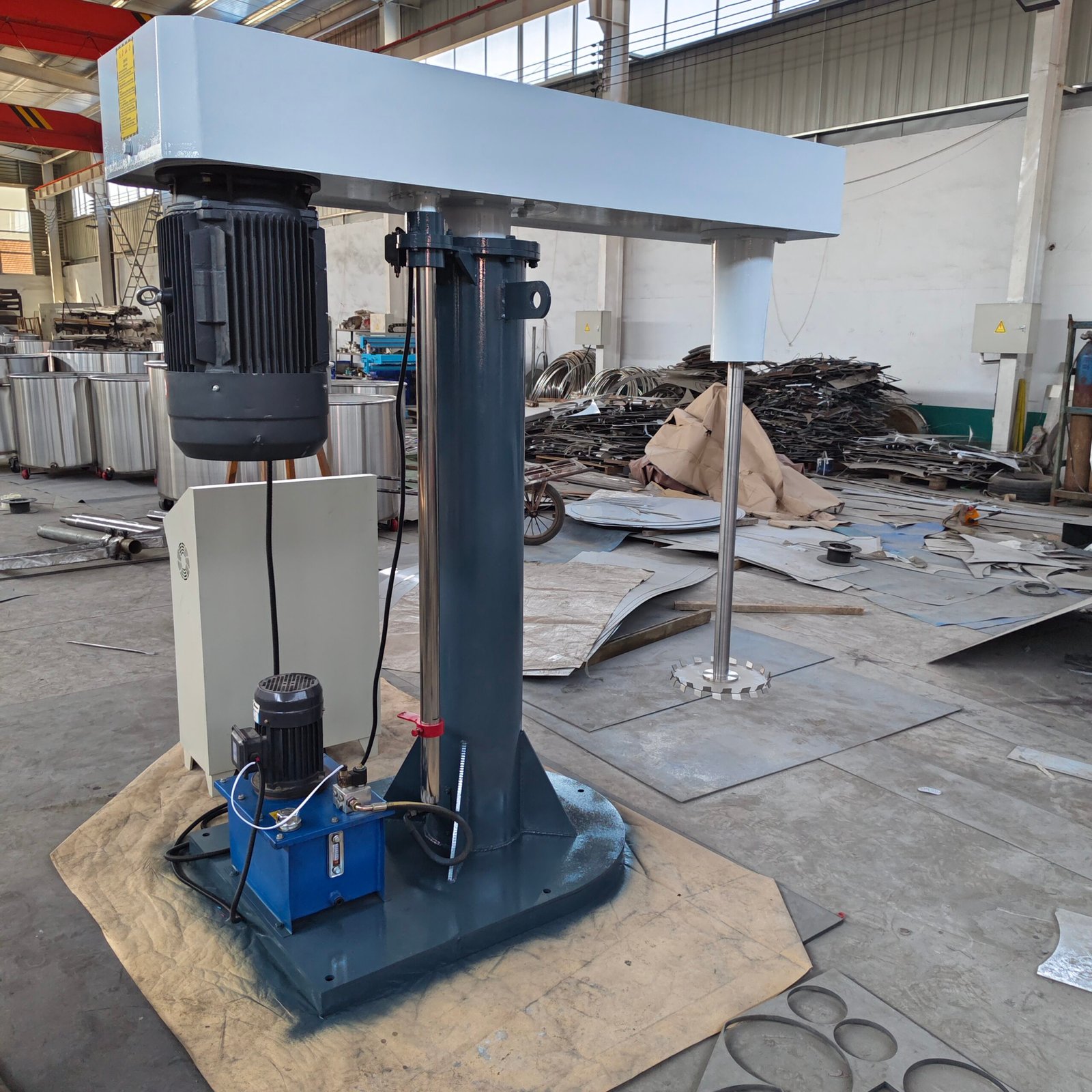

High Speed Disperser — Real Machine Photos
Trusted Across Multiple Industries
What Does a High Speed Disperser Do?
What It Does
The cost-effective saw-tooth disperser is a standard workhorse in the production of chemicals, polymers, composites, inks, paints, adhesives and food products. Its major purpose is to incorporate powders into liquid and break down particle agglomerates to generate a fine, stable dispersion.
How It Works
The open disc blade travels at roughly 5,000 feet per minute, inducing vigorous turbulent flow within a low-viscosity batch. It creates a vortex into which dry ingredients can be poured for fast wetting. Blade speed may be changed as the batch thickens to maintain the vortex and material turnover rate.
Model Specifications
| Model | Power (kW) | Capacity (L) | Disc Dia (mm) | Speed (rpm) | Stroke (mm) | Hydraulic (kW) |
|---|---|---|---|---|---|---|
| GFJ-2.2 | 2.2 | 50-150 | 150 | 0-1440 | 600 | 0.75 |
| GFJ-4 | 4 | 50-200 | 200 | 0-1440 | 600 | 0.75 |
| GFJ-5.5 | 5.5 | 80-250 | 200 | 0-1440 | 800 | 0.75 |
| GFJ-7.5 | 7.5 | 100-300 | 250 | 0-1440 | 800 | 0.75 |
| GFJ-11 | 11 | 100-400 | 250 | 0-1440 | 800 | 0.75 |
| GFJ-15 | 15 | 150-500 | 300 | 0-1440 | 800 | 0.75 |
| GFJ-18.5 | 18.5 | 200-800 | 300 | 0-1440 | 1100 | 1.1 |
| GFJ-22 | 22 | 200-1000 | 300 | 0-1440 | 1100 | 1.1 |
| GFJ-30 | 30 | 300-1500 | 350 | 0-1440 | 1100 | 1.1 |
| GFJ-37 | 37 | 400-2000 | 400 | 0-1440 | 1100 | 1.5 |
| GFJ-45 | 45 | 500-2500 | 450 | 0-1440 | 1100 | 1.5 |
| GFJ-55 | 55 | 600-3000 | 450 | 0-1440 | 1300 | 2.2 |
| GFJ-75 | 75 | 800-4000 | 550 | 0-1440 | 1800 | 2.2 |
| GFJ-90 | 90 | 1200-6000 | 600 | 0-1440 | 1800 | 2.2 |
| GFJ-110 | 110 | 1600-8000 | 700 | 0-1440 | 2100 | 3.0 |
| GFJ-132 | 132 | 2000-10000 | 800 | 0-1440 | 2300 | 3.0 |
* All specifications can be customized based on your production requirements and material viscosity. Explosion-proof models available for hazardous locations.
Safety Features & Configuration Options
Explosion-proof motor available for flammable and volatile materials
VFD speed control for different viscosities and materials
Stable hydraulic system for easy tank changes and cleaning
Vacuum cover and wall scraper for high-viscosity, bubble-free mixing
Common Questions
It disperses pigments, powders and fillers into liquids — paints, inks, adhesives, coatings and battery slurry — breaking agglomerates with high-speed shear.
A disperser uses a toothed disc at high tip speed for de-agglomeration and wetting; a mixer blends at lower speed. Many production lines combine both.
Yes. Vacuum cover, wall scraper and heating jacket are optional for high-viscosity and bubble-sensitive materials.
Customization, Certification & Delivery
Custom Design & Engineering
Explosion-proof, vacuum cover, heating jacket, dual-shaft, multi-tank, PLC/HMI control — built to your process.
Quality & Safety Certified
ISO 9001 certified factory. CE / UL / ATEX options. SUS304 / SUS316L wetted parts for food and pharma.
Fast Worldwide Shipping
Standard models in stock. Custom units shipped in 30-45 days. Sea / air / rail freight to 50+ countries.
Installation & Training
Online video guidance included. On-site installation and operator training available on request.
Warranty & Support
Our product warranty period is one year. If the machine breaks within one year, send us videos and photos — our engineers will help analyze the problem. Replacement parts are provided free of charge within the warranty period. Engineer consulting service is free for life.
