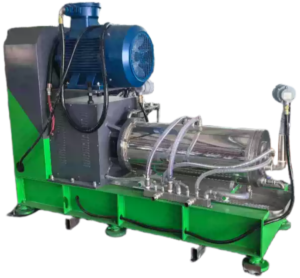

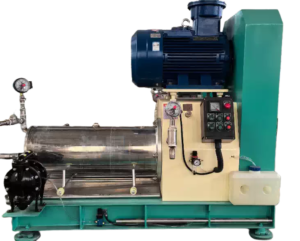

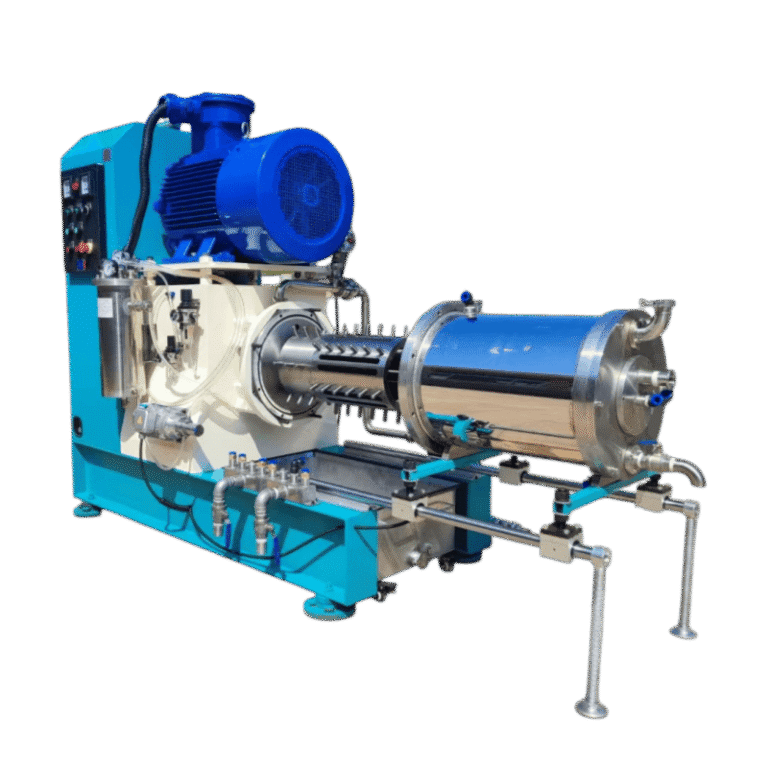

Horizontal Bead Mill for Fine Wet Grinding
HENGMEI horizontal bead mill is designed for fine wet grinding of paint, ink, pigment paste and chemical materials. It delivers high grinding efficiency, low energy consumption and consistent fineness down to 5 microns.
Get a Quote View All Products
Why Choose Our Horizontal Bead Mill?
Our horizontal bead mill is designed for fine wet grinding of paint, ink, pigment paste and chemical materials. It delivers high grinding efficiency, low energy consumption and consistent fineness down to 5 microns.

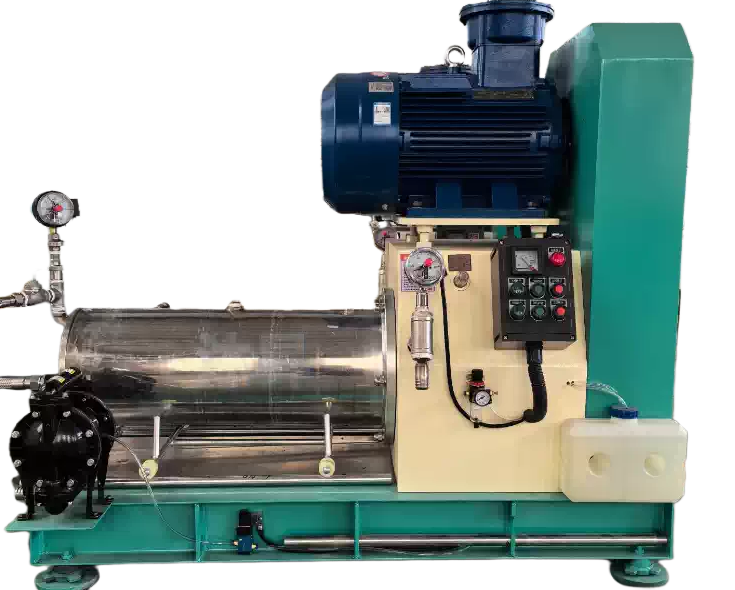

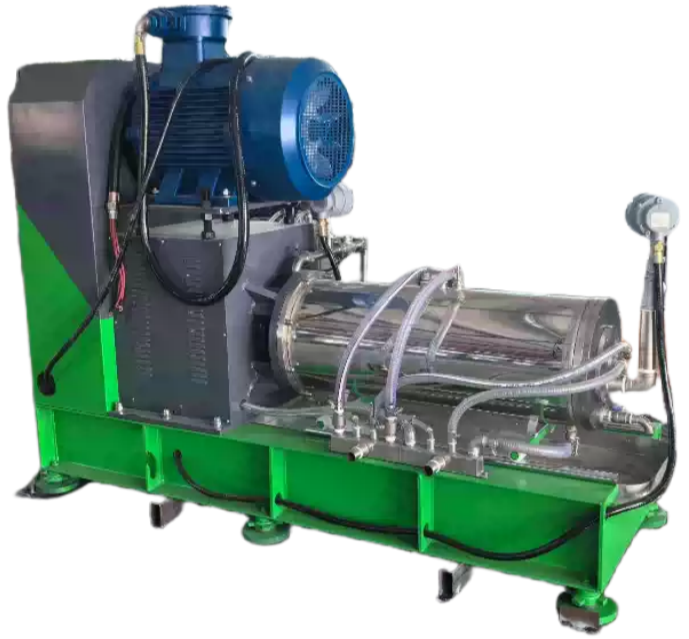

Bead Mill in Action
Trusted Across Multiple Industries
What Does a Bead Mill Do?
What It Does
The horizontal bead mill grinds and disperses liquid materials with solid particles (pigments, fillers, etc.) to achieve micron or nano-level fineness through impact and shear between grinding media and material.
How It Works

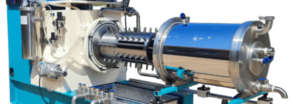

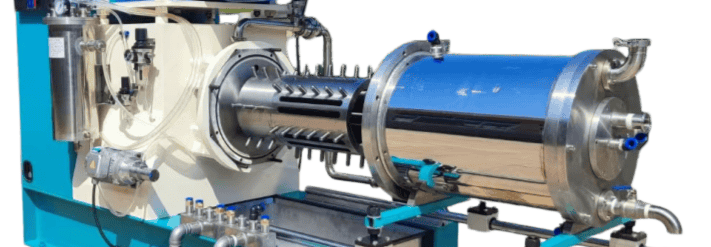

Pre-dispersed slurry is pumped into the enclosed grinding chamber. The high-speed rotating rotor drives the grinding media (zirconia beads) to impact, rub and shear the material. A separator retains the media while the ground material flows out.
One Machine, Many Buying Keywords
Each scenario below can become its own landing page targeting a different search term — same machine, different focus.
Bead Mill for Paint
Automotive paint, topcoat, wood paint and industrial paint production.
Bead Mill for Ink
Gravure ink, offset ink, screen ink, UV ink and digital inkjet ink.
Bead Mill for Pigment Paste
Color paste, pigment dispersion, carbon black and phthalocyanine blue grinding.
Bead Mill for Battery Materials
Battery slurry, lithium iron phosphate, ceramic slurry and electronic materials.
Why Choose HENGMEI Bead Mill?
Horizontal Bead Mill Specifications
| Model | Volume (L) | Motor Power (kW) | Speed (rpm) | Capacity (L/H) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| W-5 | 5 | 5.5 | 2500 | 200 | 1300×1050×450 | 640 |
| W-20 | 20 | 22 | 1230 | 800 | 1600×1450×650 | 1250 |
| W-30 | 30 | 30 | 1060 | 1200 | 1650×1550×750 | 1600 |
| W-50 | 50 | 45 | 820 | 2000 | 1900×1850×850 | 2100 |
| W-100 | 100 | 75 | 660 | 3000 | 2300×1950×950 | 3600 |
* All specifications can be customized based on your production requirements and material type.
Standard Configuration Options
| Item | Standard Configuration |
|---|---|
| Rotor Material | Wear-resistant steel / Ceramic zirconia / Polyurethane |
| Cylinder Material | Wear-resistant steel / Ceramic zirconia / Polyurethane |
| Seal Type | Cartridge double mechanical seal, designed for fine particle materials |
| Screen Specification | Tube screen, gap 0.05 / 0.1 / 0.3 / 0.5 mm (optional) |
| Instruments | Electric contact pressure gauge & thermometer with auto shut-off |
| Feed Pump | Pneumatic diaphragm pump / Screw pump / Gear pump |
| Grinding Media | Zirconia beads (ZrO₂ ≥ 80%), diameter 0.6mm - 2.0mm |
| Control System | Explosion-proof / non-explosion-proof, touch screen / VFD (optional) |
Certifications & Quality Standards
Compliant with EU Machinery Directive 2006/42/EC, LVD and EMC directives
ISO 9001 certified quality management system, reliable quality assurance
SGS certified testing and inspection, meets international standards
Explosion-proof model available for flammable and solvent-based materials
Common Questions
Depending on the material and grinding media, it can achieve fineness down to 5 microns or even sub-micron level.
We provide pneumatic diaphragm pump, screw pump and gear pump options. The choice depends on your material viscosity and abrasive level.
Yes. We offer explosion-proof motor and control cabinet options for safe continuous production with solvent-based materials.
Customization, Certification & Delivery
Custom Design & Engineering
Special rotor, barrel, seal, screen and feed pump configurations — built to your process.
Quality & Safety Certified
ISO 9001 certified factory. CE / SGS / ATEX options. SUS304 / SUS316L wetted parts available.
Fast Worldwide Shipping
Standard models in stock. Custom units shipped in 30-45 days. Sea / air / rail freight to 50+ countries.
Installation & Training
Online video guidance included. On-site installation and operator training available on request.
Warranty & Support
Our product warranty period is one year. If the machine breaks within one year, send us videos and photos — our engineers will help analyze the problem. Replacement parts are provided free of charge within the warranty period. Engineer consulting service is free for life.
