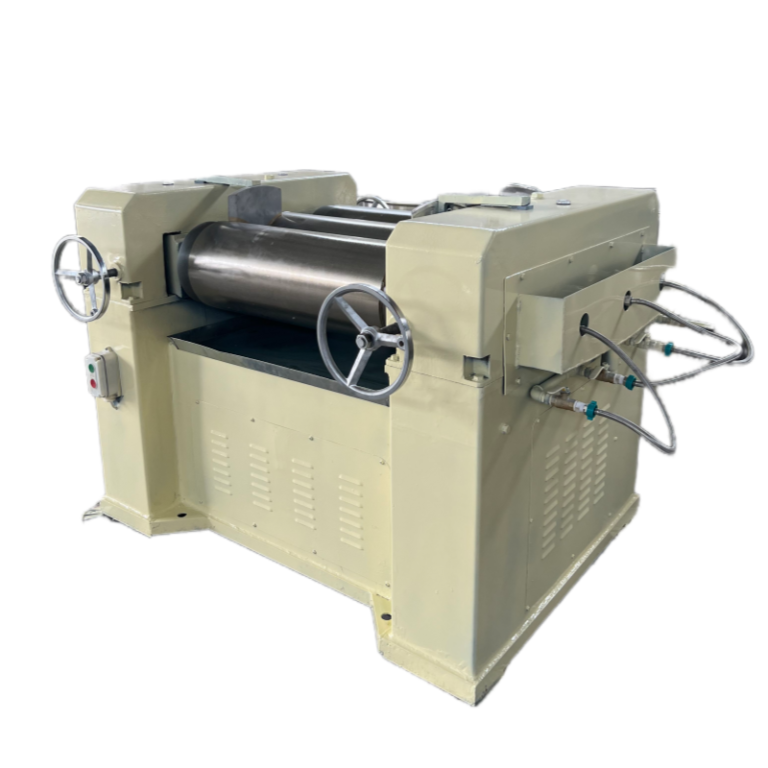

Three Roll Mill for Ultra-Fine Dispersion
HENGMEI three roll mill is designed for ultra-fine dispersion of high-viscosity materials such as paint, ink, pigment paste, cosmetics and electronic materials. It delivers consistent fineness and excellent quality.
Get a Quote View All Products
Why Choose Our Three Roll Mill?
Our three roll mill is composed of three horizontally positioned rolls rotating in opposite directions and at different speeds. It is ideal for ultra-fine dispersion of high-viscosity materials that cannot be adequately dispersed in conventional high shear mixers.

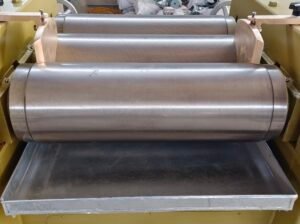

Three Roll Mill in Action
Trusted Across Multiple Industries
What Does a Three Roll Mill Do?
What It Does
A three roll mill grinds and disperses high-viscosity materials (pastes, gels, ointments, etc.) by applying high shear forces between three rotating rolls to achieve ultra-fine particle size distribution.
How It Works
The material is fed between the feed and center rolls. The three rolls rotate at different speeds in opposite directions, creating intense shear forces that break up agglomerates. The gap between rolls is adjustable for precise control.
One Machine, Many Buying Keywords
Each scenario below can become its own landing page targeting a different search term — same machine, different focus.
Three Roll Mill for Paint
Automotive paint, topcoat, wood paint and industrial paint production.
Three Roll Mill for Ink
Gravure ink, offset ink, screen ink and UV ink production.
Three Roll Mill for Pigment Paste
Color paste, pigment dispersion, carbon black and phthalocyanine blue grinding.
Three Roll Mill for Cosmetics
Cosmetic paste, lipstick, ointment and skincare product dispersion.
Why Choose HENGMEI Three Roll Mill?
Three Roll Mill Specifications
| Model | Roll Diameter (mm) | Working Length (mm) | Speed Ratio (Slow/Mid/Fast rpm) | Motor Power (kW) | Capacity (kg/h) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| S65 | Φ65 | 125 | 32 / 89 / 250 | 0.75 | 5 | 440×420×400 | 60 |
| S100 | Φ100 | 250 | 34 / 78 / 181 | 1.1 | 30 | 680×620×700 | 200 |
| S150 | Φ150 | 300 | 28 / 66 / 152 | 2.2 | 60 | 820×630×920 | 380 |
| S200 | Φ200 | 500 | 19 / 55 / 155 | 4 | 100 | 1180×1120×980 | 800 |
| S260 | Φ260 | 695 | 19 / 55 / 155 | 7.5 | 180 | 1650×1350×1200 | 2000 |
| S315 | Φ315 | 755 | 19 / 55 / 155 | 11 | 250 | 1720×1550×1180 | 2800 |
| S405 | Φ405 | 810 | 15 / 45 / 135 | 15 | 350 | 2100×1950×1350 | 5000 |
| SM405 Extended | Φ405 | 1000 | 15 / 45 / 135 | 22 | 430 | 2290×1950×1350 | 5500 |
* Fineness: 3-18μm. All specifications can be customized based on your production requirements and material type.
Certifications & Quality Standards
Compliant with EU Machinery Directive 2006/42/EC, LVD and EMC directives
ISO 9001 certified quality management system, reliable quality assurance
SGS certified testing and inspection, meets international standards
Explosion-proof model available for flammable and solvent-based materials
Common Questions
It is suitable for high-viscosity materials such as paint, ink, pigment paste, cosmetics paste, ointments, adhesives, sealants and electronic materials.
Depending on the material and roll gap setting, it can achieve fineness down to 3-18 microns.
Yes. The gap between each roll is adjustable, allowing precise control of shear level and throughput to meet different dispersion requirements.
Customization, Certification & Delivery
Custom Design & Engineering
Special roll material, surface treatment, gap adjustment and cooling configurations — built to your process.
Quality & Safety Certified
ISO 9001 certified factory. CE / SGS / ATEX options. SUS304 / SUS316L wetted parts available.
Fast Worldwide Shipping
Standard models in stock. Custom units shipped in 30-45 days. Sea / air / rail freight to 50+ countries.
Installation & Training
Online video guidance included. On-site installation and operator training available on request.
Warranty & Support
Our product warranty period is one year. If the machine breaks within one year, send us videos and photos — our engineers will help analyze the problem. Replacement parts are provided free of charge within the warranty period. Engineer consulting service is free for life.
