Vacuum High Speed Disperser

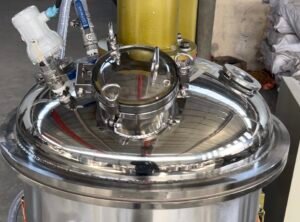

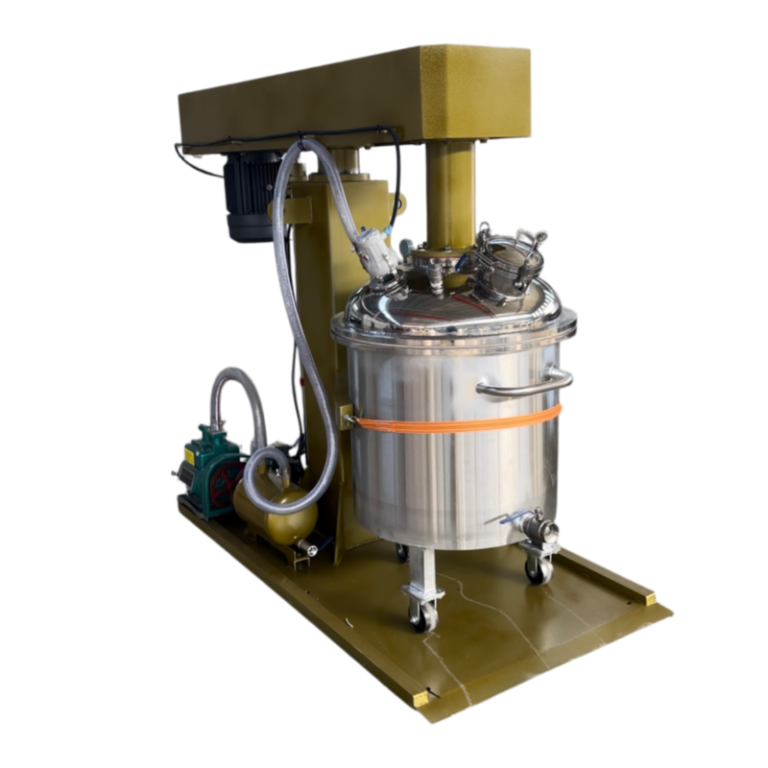

Hengmei Vacuum High Speed Disperser is a high-performance solution integrating vacuum degassing, high-shear dispersing, and wall scraping. Designed for bubble-free mixing of high-viscosity materials, it features an integrated anchor scraper to eliminate dead spots. Operating in a -0.098Mpa sealed environment, this machine ensures a smooth, uniform, and flawless final texture for premium chemical products.
Email：info@hmmixer.com
WhatsApp：8618660560825
Vacuum High Speed Disperser with Wall Scraper & Degassing Function
Product Introduction
Achieve bubble-free, high-precision dispersion in a fully sealed environment.
Our Vacuum High Speed Disperser is specifically designed for materials sensitive to air bubbles or oxidation. By integrating high-shear technology with a robust vacuum system, it ensures a smooth, uniform, and high-quality finish for your products.
Main Features of Vacuum High Speed Disperser
Technical Advantages of Vacuum High Speed Disperser
1.Airtight Sealing: Equipped with high-grade mechanical seals, maintaining a vacuum level up to -0.098 Mpa.
2.De-foaming Expert: Effectively removes micro-bubbles during the mixing process to ensure a flawless final texture.

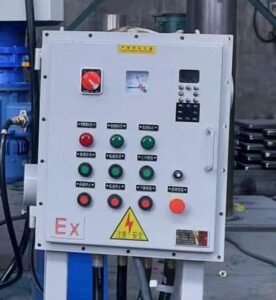

3.VFD Speed Control: Precise speed adjustment via Variable Frequency Drive (0-1500 RPM) to handle various viscosities.
4. Vacuum Degassing: Superior vacuum integrity up to -0.098Mpa for rapid de-foaming and degassing of high-viscosity materials.

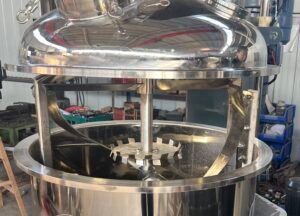

5. Wall Scraper Agitator: Integrated wall scraper prevents material build-up and ensures 100% uniform mixing without dead spots.

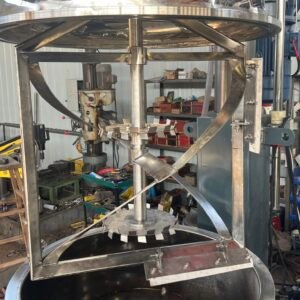

6.Optimized Impeller: Saw-tooth dispersing discs create intense hydraulic shear to break down agglomerates instantly.
Reliable Mechanical & Material Standards
7.Premium Materials: All contact parts are made of SS304 or SS316L stainless steel for corrosion resistance.
8.Hydraulic Lifting: Smooth and stable elevation system for easy tank replacement and maintenance.
Key Advantages
Efficient Degassing
Mixing under vacuum eliminates micro-bubbles, preventing product oxidation and structural voids.
Powerful Dispersion
The saw-tooth dispersing disc rotates at high speeds (up to 25m/s), creating a strong vortex that breaks down agglomerates instantly.
Hydraulic Lift
Industrial-grade hydraulic system ensures smooth lifting and lowering for easy tank changes and cleaning.
Flexible Configuration
Optional wall scrapers for high-viscosity materials or jacketed tanks for precise temperature control.
Technical Specifications
Standard Models of **Vacuum High Speed Disperser**
| Technical Parameter | Standard Specifications |
|---|---|
| Main Dispersing Power | 1.5kW – 132kW (High Torque) |
| Wall Scraper Power | 0.75kW – 7.5kW (Heavy Duty) |
| Working Capacity | 50L – 10,000L (Customizable) |
| Dispersing Speed | 0 – 1,450 RPM (VFD Control) |
| Scraper Speed | 0 – 60 RPM (Precise Mixing) |
| Vacuum Degree | -0.098 MPa (High Integrity) |
| Wetted Parts | Stainless Steel SUS304 / SUS316L |
| Scraper Blade | High-Temp PTFE (Teflon) |
| Lift Method | Stable Hydraulic Lift System |
*Customized solutions for high-viscosity Vacuum High Speed Disperser with Wall Scraper are available. Contact our engineers for details.
Applications
Applications
Adhesives (Silicone, Epoxy), Inks, Color Pastes.
Coatings
Premium Automotive Paints, Industrial Coatings, Latex Paints.
New Energy
Lithium Battery Slurry, Conductive Slurry.
Pharma & Cosmetics
Ointments, Lotions, Creams.
Customized solutions for 20+ years. Get a technical proposal and quotation within 24 hours.
