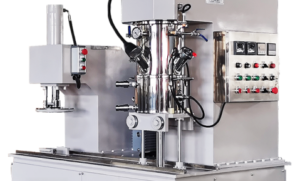

Lab Double Planetary Mixer
Why Choose Lab Double Planetary Mixer?
Our Lab Double Planetary Mixer ensures 100% homogenization for heavy pastes. The dual-action blades rotate and orbit simultaneously, eliminating dead zones and providing superior mixing results.
Email：info@hmmixer.com
WhatsApp：8618660560825
Product Introduction
Main Features of Lab Double Planetary Mixer
Technical Advantages of Planetary Kneader
1.Lab Double Planetary Mixer is the ultimate solution for high-viscosity chemical processing. By utilizing a unique dual-axis orbital movement, the machine provides intense kneading, shearing, and folding actions, ensuring perfect uniformity in shorter processing times.
Disperser
2.Specially engineered for the demanding requirements of lithium-ion battery, pharmaceutical, and sealant industries, our mixers are designed to handle complex formulations with consistent, high-quality results.
3.To ensure product integrity, our mixers feature superior vacuum-tight construction capable of reaching -0.098MPa. This allows for efficient degassing and the elimination of micro-bubbles in sensitive materials.
Key Advantages
Dual-Action Planetary Mixing
Two blade sets rotate on their own axes while orbiting the vessel center, eliminating all dead zones for 100% homogenization.
Superior Vacuum Performance
Maintains a stable vacuum level up to -0.098MPa, effectively removing micro-bubbles and preventing material oxidation.
Full-Surface Wall Scraping
Independent PTFE scrapers continuously sweep the inner walls and bottom, ensuring optimal heat transfer and preventing material buildup.
Ultra-High Torque Capacity
Engineered with a heavy-duty gearbox to effortlessly process materials with viscosities from 10,000 to 2,000,000 cps.
Technical Specifications
Standard Models of ** Double Planetary Mixers**
| Technical Specs | 5L | 10L | 20L | 50L | 100L | 200L | 300L | 500L | 1000L |
|---|---|---|---|---|---|---|---|---|---|
| Design Volume (L) | Inquiry for Details | 25 | 65 | 140 | 250 | Inquiry for Details | |||
| Working Volume (L) | 20 | 50 | 100 | 200 | |||||
| Mixing Power (kW) | 4 | 5.5 | 7.5 | 11 | |||||
| Orbital Speed (rpm) | 0-65 | 0-65 | 0-65 | 0-65 | |||||
| Rotation Speed (rpm) | 0-170 | 0-170 | 0-170 | 0-170 | |||||
| Scraper Speed (rpm) | 0-65 | 0-65 | 0-65 | 0-65 | |||||
| Disperser Power (kW) | 5.5 | 7.5 | 11 | 15 | |||||
| Disperser Speed (rpm) | 0-1450 | 0-1450 | 0-1450 | 0-1450 | |||||
| Hydraulic Power (kW) | 1.1 | 1.5 | 1.5 | 2.2 | |||||
| Lifting Stroke (mm) | Inquiry | 200 | 250 | 300 | 400 | ||||
Applications
Applications
Adhesives (Silicone, Epoxy), Inks, Color Pastes.
Coatings
Premium Automotive Paints, Industrial Coatings, Latex Paints.
New Energy
Lithium Battery Slurry, Conductive Slurry.
Pharma & Cosmetics
Ointments, Lotions, Creams.
Customized solutions for 20+ years. Get a technical proposal and quotation within 24 hours.
