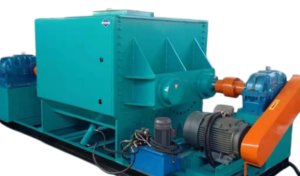

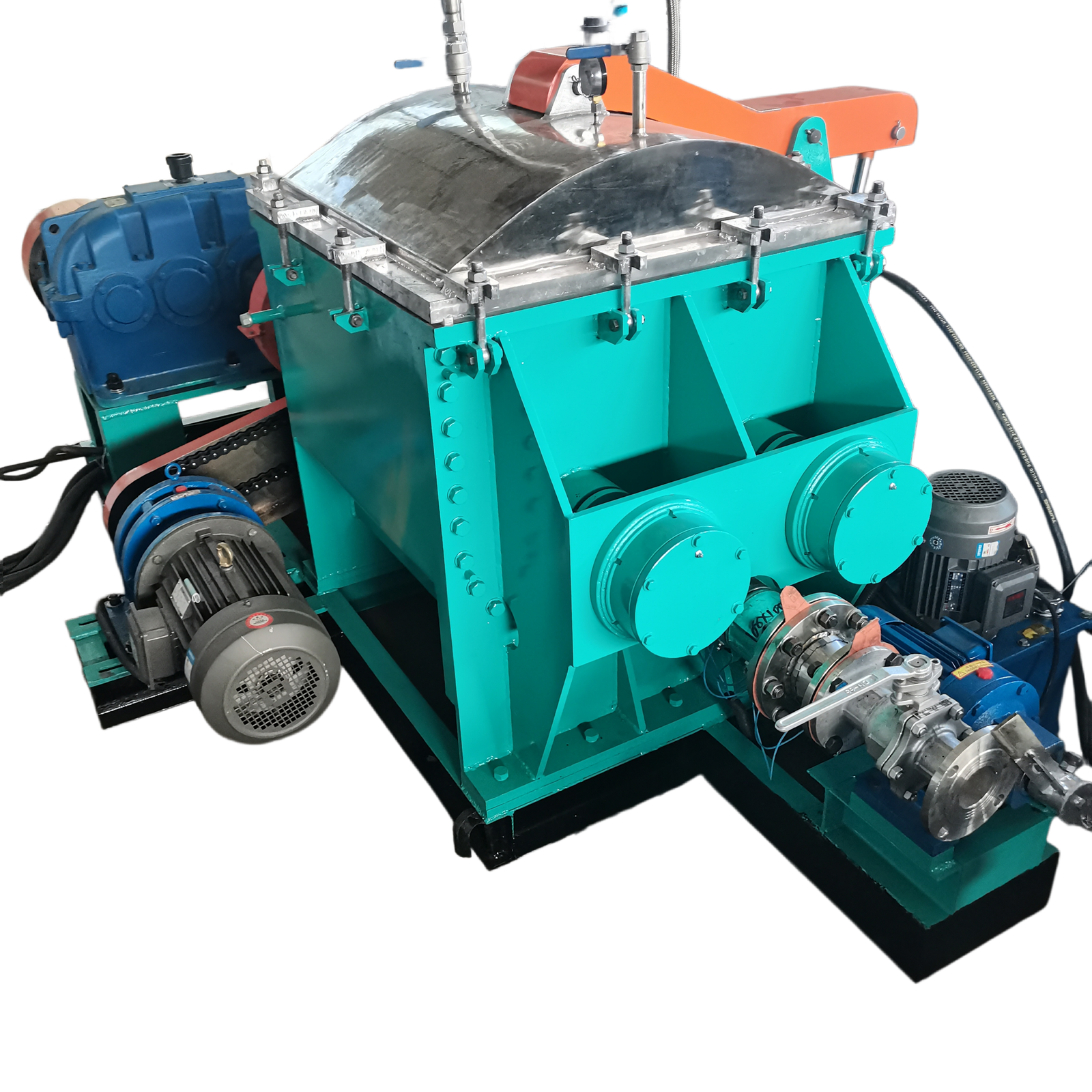

Industrial Sigma Mixer (Kneader)
Email：info@hmmixer.com
WhatsApp：8618660560825
Product Introduction
Main Features of Z-Blade Kneader
Technical Advantages of Industrial Sigma Mixer (Kneader)

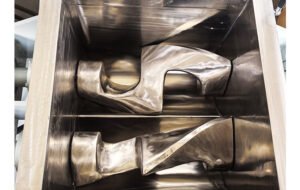

Our Sigma Mixer (Z-Blade Kneader) represents the pinnacle of high-viscosity material processing technology. Equipped with two counter-rotating Z-shaped blades, it delivers intense shearing, stretching, and kneading actions to ensure total homogenization of ultra-thick substances.
Industrial Sigma Mixer (Kneader)
Engineered for industries requiring extreme durability, this mixer is the gold standard for producing Silicone Rubber, BMC/SMC, Chewing Gum, Hot Melt Adhesives, and Carbon Paste. Each unit is precision-machined to handle viscosities up to several million cps.
With a robust vacuum-tight design achieving -0.098MPa, our kneaders effectively eliminate bubbles and oxidation during the mixing process. The heavy-duty jacketed trough allows for precise temperature control via steam, thermal oil, or water cooling.
Key Advantages
Dual Z-Blade Design
Differential blade speeds create high-intensity shearing for thick materials.
Vacuum & Pressure
Stable vacuum degree up to -0.098MPa for perfect de-foaming.
Heating/Cooling Jacket
Double-layered trough for precise water,

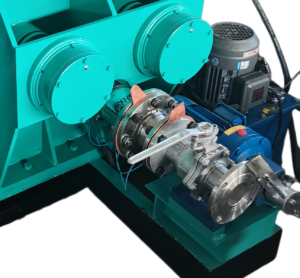

Discharge Options
Choose from Hydraulic Tilting, Screw Extrusion, or Bottom Discharge valves.
Technical Specifications
Standard Models of ** Z-Blade Kneader**
| Model | Total Volume (L) | Working Volume (L) | Main Motor (kW) | Blade Speed (rpm) Fast / Slow |
Discharge Method |
|---|---|---|---|---|---|
| SK-5 | 7 | 5 | 1.5 – 2.2 | 45 / 30 | Manual Tilting |
| SK-50 | 75 | 50 | 5.5 – 7.5 | 40 / 26 | Hydraulic Tilting |
| SK-100 | 150 | 100 | 11 – 15 | 35 / 22 | Hydraulic / Screw |
| SK-200 | 300 | 200 | 18.5 – 22 | 35 / 22 | Hydraulic / Screw |
| SK-300 | 450 | 300 | 30 – 37 | 32 / 20 | Hydraulic / Screw |
| SK-500 | 750 | 500 | 45 – 55 | 30 / 18 | Hydraulic / Screw |
| SK-1000 | 1500 | 1000 | 75 – 90 | 28 / 15 | Screw Extrusion |
Customized solutions for 20+ years. Get a technical proposal and quotation within 24 hours.
