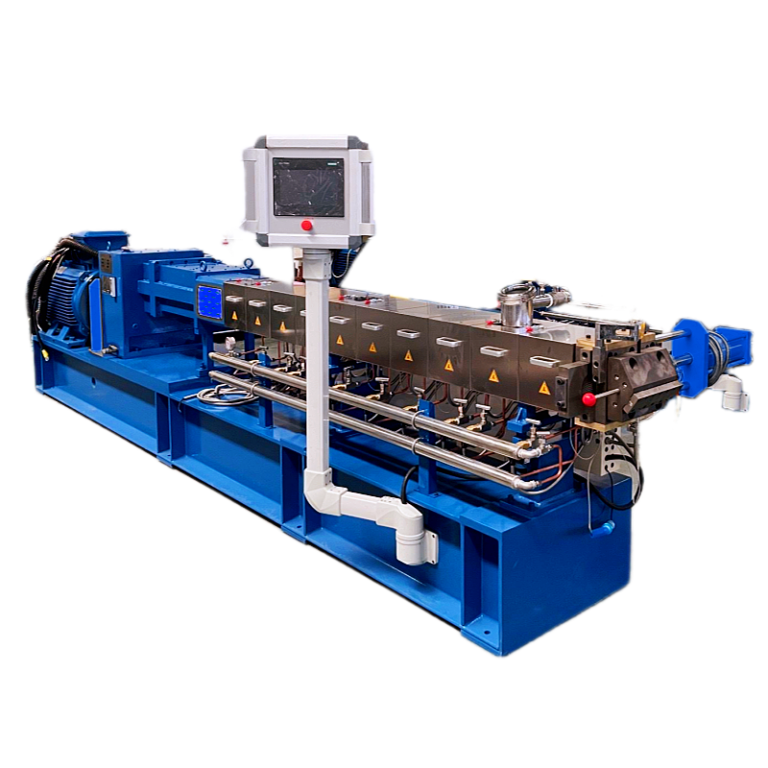

Co-Rotating Twin Screw Extruder for Compounding & Masterbatch
HENGMEI co-rotating twin screw extruder is designed for high-efficiency compounding and masterbatch production. It offers excellent mixing, dispersing and plasticizing performance for various plastic materials.
Get a Quote View All Products
Why Choose Our Twin Screw Extruder?
Our co-rotating twin screw extruder is designed for high-efficiency compounding and masterbatch production. It offers excellent mixing, dispersing and plasticizing performance for various plastic materials.
Twin Screw Extruder in Action
Trusted Across Multiple Industries
What Does a Twin Screw Extruder Do?
What It Does
The co-rotating twin screw extruder mixes, disperses and plasticizes various plastic materials, additives and fillers to produce high-quality pellets.
How It Works
Materials are fed into the extruder, plasticized by heat and shear, mixed and dispersed by the co-rotating twin screws, then extruded and pelletized into uniform pellets.
One Machine, Many Buying Keywords
Each scenario below can become its own landing page targeting a different search term — same machine, different focus.
Twin Screw Extruder for Masterbatch
Color masterbatch, filler masterbatch and additive masterbatch production.
Twin Screw Compounding Extruder
Plastic compounding, alloying and blending for various applications.
Twin Screw Extruder for Recycling
Plastic recycling and reprocessing with devolatilization and degassing.
Twin Screw Extruder for Battery Materials
Battery slurry and conductive material production for new energy industry.
Why Choose HENGMEI Twin Screw Extruder?
Standard Configuration Twin-Screw Extruder Specifications
| Model | L:D Ratio | RPM (r/min) | Power (kW) | Production (kg/h) |
|---|---|---|---|---|
| 35 | 1:32-1:68 | 400-600 | 15-18.5 | 20-80 |
| 40 | 1:32-1:68 | 400-600 | 30-37 | 50-120 |
| 50 | 1:32-1:68 | 400-600 | 45-55 | 80-200 |
| 52 | 1:32-1:68 | 400-600 | 55-75 | 100-250 |
| 60 | 1:32-1:68 | 400-600 | 75-90 | 250-400 |
| 65 | 1:32-1:68 | 400-600 | 90-110 | 300-550 |
| 75 | 1:32-1:68 | 400-600 | 132-160 | 450-750 |
| 85 | 1:32-1:68 | 400-600 | 185-250 | 600-1000 |
| 95 | 1:32-1:68 | 400-600 | 280-355 | 1200-2000 |
| 110 | 1:32-1:68 | 400-600 | 355-550 | 1500-2500 |
| 125 | 1:32-1:68 | 400-600 | 450-600 | 1300-2800 |
| 135 | 1:32-1:68 | 400-600 | 630-800 | 3200-7500 |
* All specifications can be customized based on your production requirements and material type.
Certifications & Quality Standards
Compliant with EU Machinery Directive 2006/42/EC, LVD and EMC directives
ISO 9001 certified quality management system, reliable quality assurance
SGS certified testing and inspection, meets international standards
Explosion-proof model available for flammable and volatile materials
Common Questions
It can process various plastics including PP, PE, PET, PA, PC, ABS, and engineering plastics with additives and fillers.
Our models range from 10 kg/h to 1000 kg/h depending on the screw diameter and motor power.
Yes. We provide complete extrusion lines including feeding, extruding, pelletizing and cooling systems.
Customization, Certification & Delivery
Custom Design & Engineering

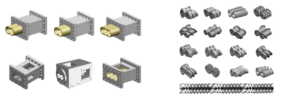

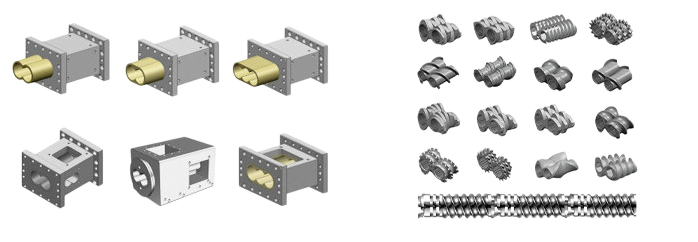

Special screw configuration, barrel design, feeding system and pelletizing system — built to your process.
Quality & Safety Certified
ISO 9001 certified factory. CE / SGS / ATEX options. SUS304 / SUS316L wetted parts available.
Fast Worldwide Shipping
Standard models in stock. Custom units shipped in 30-45 days. Sea / air / rail freight to 50+ countries.
Installation & Training
Online video guidance included. On-site installation and operator training available on request.
Warranty & Support
Our product warranty period is one year. If the machine breaks within one year, send us videos and photos — our engineers will help analyze the problem. Replacement parts are provided free of charge within the warranty period. Engineer consulting service is free for life.
