Double Planetary Mixers
Why Choose Our Double Planetary Mixers?
Our Double Planetary Mixer ensures 100% homogenization for heavy pastes. The dual-action blades rotate and orbit simultaneously, eliminating dead zones and providing superior mixing results.
Product Introduction
Main Features of Double Planetary Mixers
Technical Advantages of Planetary Kneader
1.Our Double Planetary Mixer is the ultimate solution for high-viscosity chemical processing. By utilizing a unique dual-axis orbital movement, the machine provides intense kneading, shearing, and folding actions, ensuring perfect uniformity in shorter processing times.
Disperser
2.Specially engineered for the demanding requirements of lithium-ion battery, pharmaceutical, and sealant industries, our mixers are designed to handle complex formulations with consistent, high-quality results.
3.To ensure product integrity, our mixers feature superior vacuum-tight construction capable of reaching -0.098MPa. This allows for efficient degassing and the elimination of micro-bubbles in sensitive materials.
Key Advantages

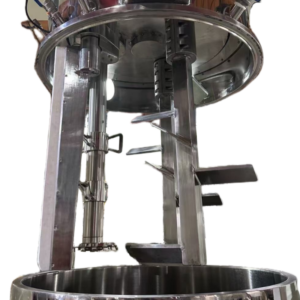

Dual-Action Planetary Mixing
Two blade sets rotate on their own axes while orbiting the vessel center, eliminating all dead zones for 100% homogenization.
Superior Vacuum Performance
Maintains a stable vacuum level up to -0.098MPa, effectively removing micro-bubbles and preventing material oxidation.
Full-Surface Wall Scraping
Independent PTFE scrapers continuously sweep the inner walls and bottom, ensuring optimal heat transfer and preventing material buildup.
Ultra-High Torque Capacity
Engineered with a heavy-duty gearbox to effortlessly process materials with viscosities from 10,000 to 2,000,000 cps.
Technical Specifications
Standard Models of ** Double Planetary Mixers**
| Technical Specs | 5L | 10L | 20L | 50L | 100L | 200L | 300L | 500L | 1000L |
|---|---|---|---|---|---|---|---|---|---|
| Design Volume (L) | Inquiry for Details | 25 | 65 | 140 | 250 | Inquiry for Details | |||
| Working Volume (L) | 20 | 50 | 100 | 200 | |||||
| Mixing Power (kW) | 4 | 5.5 | 7.5 | 11 | |||||
| Orbital Speed (rpm) | 0-65 | 0-65 | 0-65 | 0-65 | |||||
| Rotation Speed (rpm) | 0-170 | 0-170 | 0-170 | 0-170 | |||||
| Scraper Speed (rpm) | 0-65 | 0-65 | 0-65 | 0-65 | |||||
| Disperser Power (kW) | 5.5 | 7.5 | 11 | 15 | |||||
| Disperser Speed (rpm) | 0-1450 | 0-1450 | 0-1450 | 0-1450 | |||||
| Hydraulic Power (kW) | 1.1 | 1.5 | 1.5 | 2.2 | |||||
| Lifting Stroke (mm) | Inquiry | 200 | 250 | 300 | 400 | ||||
Applications
Applications
Adhesives (Silicone, Epoxy), Inks, Color Pastes.
Coatings
Premium Automotive Paints, Industrial Coatings, Latex Paints.
New Energy
Lithium Battery Slurry, Conductive Slurry.
Pharma & Cosmetics
Ointments, Lotions, Creams.
Customized solutions for 20+ years. Get a technical proposal and quotation within 24 hours.
